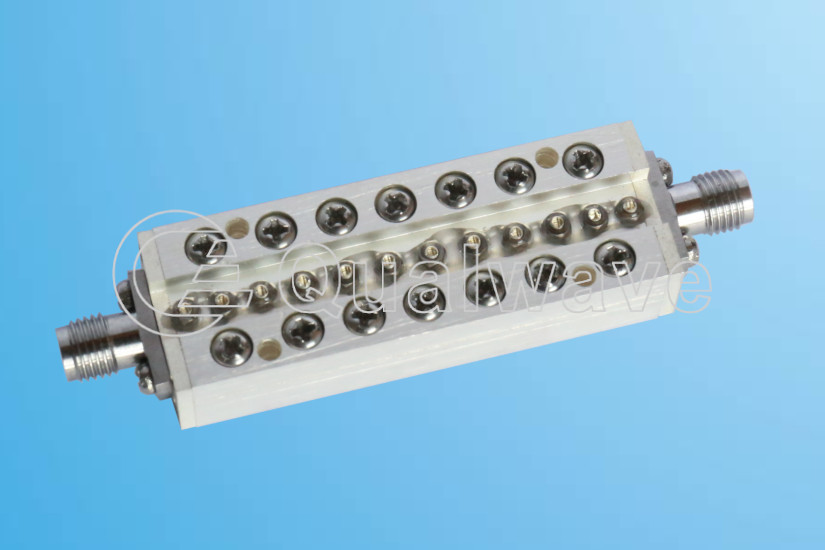

带通滤波器

扩维提供频率高达170GHz的带通滤波器,阻带抑制优良。广泛应用于多个领域。

特点:
  • 高阻带抑制
  • 尺寸小
应用:
  • 电信
  • 实验室测试
  • 接收机
  • 仪表
Band Pass Filters
型号 通带(GHz) 插损(dB,最大值) 驻波(最大值) 阻带衰减(dB) 阻带衰减(dB) 连接器
QBF-40-100-30 0.04~0.1 1.5 1.5 30@DC~0.03GHz 30@0.118~0.4GHz SMA
QBF-50-150-45 0.05~0.15 1.0 1.45 45@DC~0.035GHz 45@0.21~1GHz SMA
QBF-50-250-30 0.05~0.25 1.2 1.8 30@DC~0.04GHz 30@0.31~0.5GHz SMA
QBF-110-170-30 0.11~0.17 2 1.5 30@DC~0.08GHz 30@0.2~0.4GHz SMA
QBF-136-174-60 0.136~0.174 2 1.5 60dBc@350~530MHz - SMA
QBF-150-230-45 0.15~0.23 2 1.5 45@DC~120MHz 45@280~500MHz SMA
QBF-245-355-25 0.245~0.235 2 1.5 38@DC~0.2GHz 25@0.4~0.9GHz SMA
QBF-273-277-50 0.273~0.277 2.5 2 50@DC~0.26GHz 50@0.29~1GHz 表贴
QBF-300-600-30 0.3~0.6 1.8 1.5 30@0.26GHz 30@0.65GHz SMA
QBF-310-443-50 0.31~0.443 1 1.5 50@DC~0.1765GHz 50@0.5765~1.5GHz SMA
QBF-350-550-60 0.35~0.55 2 1.5 60dBc@136~174MHz - SMA
QBF-400-700-50 0.4~0.7 2.5 1.5 50@DC~0.3GHz 50@0.85~1GHz 2.92mm
QBF-430-450-30 0.43~0.45 1 1.22 30@DC~0.425GHz 30@0.455~1GHz SMA
QBF-497.5-502.5-40 0.4975~0.5025 1.2 1.22 40@DC~0.493GHz 40@0.507~1GHz SMA
QBF-585-615-60 0.585~0.615 0.5 2 60@0.45GHz 60@0.75GHz SMA
QBF-606-678-40 0.606~0.678 1.5 1.5 40@DC~0.5GHz 30@0.825~3GHz SMA
QBF-710-730-45 0.71~0.73 2.5 1.3 45@0.695GHz 50@0.735GHz SMA
QBF-800-1200-45 0.8~1.2 1 1.8 45@0.55GHz 45@1.45GHz SMA
QBF-800-1600-40 0.8~1.6 5 2.2 40@0.75GHz 40@1.65GHz SMA
QBF-818-918-45 0.818~0.918 3 1.5 45@0.668GHz 45@1.068GHz SMA
QBF-818-1000-45 0.818~1 3 1.5 45@0.709GHz 45@1.109GHz SMA
QBF-859-959-45 0.859~0.959 3 1.5 45@0.709GHz 45@1.109GHz SMA
QBF-860-880-60 0.86~0.88 1.5 1.5 60@DC~0.8375GHz 60@0.9025~2GHz SMA
QBF-890-910-60 0.89~0.91 1.5 1.5 60@DC~0.8675GHz 60@0.9325~2GHz SMA
QBF-920-940-60 0.92~0.94 1.5 1.5 60@DC~0.8975GHz 60@0.9625~2GHz SMA
QBF-955-2155-60 0.955~2.155 1.5 1.8 60dB @ DC ~ 450MHz 60dB @ 2750 ~ 5000MHz SMA
QBF-960-1240-30 0.96~1.24 1.5 1.5 30@860MHz 30@1350MHz SMA
QBF-1000-1700-50 1~1.7 1.7 1.7 50@DC~0.9GHz 60@1.8~2.2GHz 2.92mm
QBF-1000-1800-30 1~1.8 2 1.5 30@0.8&2.2GHz 60@0.1~23GHz SMA
QBF-1050-2250-30 1.05~2.25 5 1.5 30@0.3GHz 60@3GHz SMA
QBF-1100-1600-50 1.1~1.6 2.5 1.5 50@0.9GHz 50@1.8GHz SMA
QBF-1200-1400-50 1.2~1.4 0.3 1.35 50@0.8GHz 50@2~6GHz N
QBF-1330-1430-45 1.33~1.43 0.5 1.25 45@DC~1.08GHz 45@1.68~4.5GHz SMA
QBF-1390-1410-80 1.39~1.41 2 1.3 80@1.35GHz 80@1.47GHz SMA
QBF-1400-1800-60 1.4~1.8 2 1.5 60@DC~1.3GHz 60@1.9~3GHz SMA
QBF-1400-1850-60 1.4~1.85 2 1.5 60@DC~1.3GHz 60@1.9~3GHz SMA
QBF-1500-1600-45 1.5~1.6 3 1.5 45@1.35GHz 45@1.75GHz SMA
QBF-1518-1553-40 1.518~1.553 3 1.5 40@0.1GHz 40@0.5355&2.5355GHz Pin
QBF-1640-1675-40 1.64~1.675 3 1.5 40@0.1GHz 40@0.6575&2.6575GHz Pin
QBF-1800-2200-45 1.8~2.2 1.2 1.5 45@1.55GHz 45@2.45GHz SMA
QBF-1950-2050-40 1.95~2.05 2 1.5 40@1.9GHz 40@2.1GHz SMA
QBF-1980-2010-80 1.98~2.01 1.5 1.5 80@DC~1.82GHz 80@2.17~2.2GHz SMA
QBF-2000-3000-50 2~3 1 1.5 50@DC~1.78GHz 50@3.22~5GHz SMA
QBF-2000-3800-50 2~3.8 1.7 1.7 50@DC~1.7GHz 50@4.1~5GHz 2.92mm
QBF-2000-4000-60 2~4 1 1.6 60@1.5GHz 60@4.5GHz SMA
QBF-2025-2085-40 2.025~2.085 1 1.3 40@2.2~2.3GHz - SMA
QBF-2200-2400-30 2.2~2.4 1 1.5 40@DC~2.1GHz 30@2.5~4.5GHz SMA
QBF-2200-2400-30-N 2.2~2.4 2.2 1.5 40@DC~2.1GHz 30@2.5~4.5GHz N
QBF-2200-2400-60 2.2~2.4 1 1.22 60@DC~2.1GHz 60@2.5~6GHz SMA
QBF-2025-2120-50 2.025~2.12 2 1.3 50@1.95GHz 50@2.2~2.3GHz SMA
QBF-2200-2800-30 2.2~2.8 1 2 30@2GHz 30@3GHz SMA
QBF-2240-2280-30 2.24~2.28 1.1 1.25 30@2.22~2.3GHz - SMA&N
QBF-2300-2500-45 2.3~2.5 3 1.5 45@2.05GHz 45@2.75GHz SMA
QBF-2400-2500-35 2.4~2.5 1.5 1.5 35@DC~2.2GHz 35@2.7~5GHz SMA
QBF-2400-2500-50 2.4~2.5 1 1.3 50@DC~2.05GHz 50@2.85~5GHz SMA
QBF-2400-3600-30 2.4~3.6 1 1.5 30@2GHz 30@4GHz SMA
QBF-2483.55-2499.95-40 2.48355~2.49995 1 1.25 60@DC~2.39175&2.59175~6.5GHz 40@2.39175~2.44175&2.54175~2.59175GHz SMA
QBF-2500-2700-30 2.5~2.7 1.3 1.25 30@DC~2.45GHz 40@2.75~6GHz SMA
QBF-2526.5-2579.5-40 2.5265~2.5795 1 1.5 40@2.3GHz 40@2.7GHz SMA
QBF-2573.5-2626.5-40 2.5735~2.6265 0.8 1.3 40@2.5435GHz 40@2.6565GHz SMA
QBF-2613.5-2666.5-40 2.6135~2.6665 0.8 1.3 40@2.5835GHz 40@2.6965GHz SMA
QBF-2700-3300-60 2.7~3.3 1.8 1.22 60@DC~2.6GHz 60@3.4~7GHz SMA
QBF-2700-3500-60 2.7~3.5 0.9 1.7 60@2.4GHz 60@3.8GHz SMA
QBF-2900-3600-50 2.9~3.6 1.0 1.22 50@DC~2.57GHz 50@3.85~7GHz SMA
QBF-3000-4300-50 3~4.3 1 1.5 50@DC~2.5GHz 50@5~7GHz SMA
QBF-3400-3600-30 3.4~3.6 1.5 1.25 30@DC~3.35GHz 30@3.65~8GHz SMA
QBF-3800-6800-60 3.8~6.8 1 1.7 60@DC~2.92GHz 60@8.16~9GHz SMA
QBF-4000-6000-70 4~6 2 2 70@DC~3.6GHz 60@6.38~8GHz SMA
QBF-4000-6000-40 4~6 1 1.5 40@3.4GHz 40@7GHz SMA
QBF-4300-8200-50 4.3~8.2 1.5 1.7 50@DC~3.7GHz 50@8.8~10GHz 2.92mm
QBF-4950-5050-40 4.95~5.05 1.5 1.25 80@DC~4.7&5.3~17GHz 40@4.7~4.85&5.15~5.3GHz SMA
QBF-4960-4980-70 4.96~4.98 0.8 1.25 70@DC~4.27&5.67~14GHz 50@4.27~4.57&5.37~5.67GHz SMA
QBF-5000-6000-35 5~6 1.5 1.5 35@DC~4.6GHz 35@6.4~10GHz SMA
QBF-5000-6000-35-1 5~6 1.8 1.8 35@DC~4.9GHz 35@6.1~12GHz SMA
QBF-5000-6000-45 5~6 1.5 1.5 45@DC~4GHz 45@6.6~13GHz SMA
QBF-5600-6000-60 5.6~6 0.9 1.5 60@5.05GHz 60@6.15GHz SMA
QBF-5640-5660-50 5.64~5.66 0.6 1.3 50@DC~5GHz 50@6.3~18GHz SMA
QBF-5645-5646-13 5.645~5.646 2.2 1.3 13@DC~5.6355GHz 13@65.6555~10GHz SMA
QBF-5650.5-5651.5-13 5.6505~5.6515 3 1.3 13dB@DC~5.641GHz 13dB@5.661~8GHz SMA
QBF-5652.5-5653.5-13 5.6525~5.6535 3 1.3 13dB@DC~5.643GHz 3dB@5.663~8GHz SMA
QBF-5700-5900-45 5.7~5.9 1.8 1.5 45@5.5GHz 45@6.1GHz SMA
QBF-5841-6249-50 5.841~6.249 1 1.5 50@DC~4.85GHz 50@7.15~15GHz SMA
QBF-5900-7150-70 5.9~7.15 0.6 1.25 70dB@DC~5.08GHz 70dB@7.77~19GHz SMA
QBF-6000-8192-20 6~8.192 3 1.8 20@5.7GHz 20@8.5GHz SMA
QBF-6800-7800-40 6.8~7.8 2 1.5 40@6.2GHz 40@8.4GHz SMA
QBF-6800-9800-60 6.8~9.8 1 1.5 60@DC~5.32GHz 60@11.76~15GHz SMA
QBF-6867.2-7500-30 6.8672~7.5 2 1.5 10@6.5925GHz 30@5~6.3288GHz Pin
QBF-7000-7400-40 7~7.4 1.2 1.5 40@DC~6.76GHz 40@7.64~10GHz SMA
QBF-7300-8300-40 7.3~8.3 2 1.5 40@6.7GHz 40@9GHz SMA
QBF-7400-12600-40 7.4~12.6 1.5 1.6 40@DC~6GHz 40@14~18GHz SMA
QBF-7650-8350-50 7.65~8.35 3 1.5 50@7.15GHz 50@8.5GHz SMA
QBF-7715-8695-80 7.715~8.695 3 1.5 80@7.5GHz 80@8.91GHz SMA
QBF-8000-11000-45 8~11 0.65 1.8 45@5GHz 45@16~22GHz SMA
QBF-8000-12000-30 8~12 1 1.8 45@7GHz 30@13~20GHz SMA
QBF-8150-8250-40 8.15~8.25 3 1.5 40@8.1GHz 40@8.3GHz SMA
QBF-8192-16384-20 8.192~16.384 3 1.8 20@7.1GHz 20@17.5GHz SMA
QBF-8250-9250-50 8.25~9.25 2.5 1.5 50@DC~7.75GHz 50@9.75~18GHz SMA
QBF-8400-8500-90 8.4~8.5 1.9 1.25 90@DC~8100MHz 90@8800~22000MHz SMA
QBF-8400-9600-30 8.4~9.6 2 1.5 30@DC~8GHz 30@10~18GHz SMA
QBF-8500-9500-40 8.5~9.5 2 1.5 40@7.6GHz 40@10.3GHz SMA
QBF-8500-16500-50 8.5~16.5 1.5 1.8 50@DC~7.2GHz 50@17.8~19GHz 2.92mm
QBF-8700-12800-35 8.7~12.8 0.5 1.5 25@8GHz 35@14GHz SMA
QBF-9000-10000-40 9~10 2 1.5 40@8.3GHz 40@10.6GHz SMA
QBF-9000-11700-30 9~11.7 1 1.25 45@DC~8.1&12.3~12.6GHz 30@8.1~8.4&12.6~25GHz SMA
QBF-9000-14000-40 9~14 1.5 1.8 40@DC~8GHz 40@15~23GHz SMA
QBF-9250-10750-60 9.25~10.75 1.2 1.7 60@8.9GHz 60@11.1GHz SMA
QBF-9400-10600-30 9.4~10.6 1.5 1.5 30@9GHz 30@11GHz SMA
QBF-9800-12800-60 9.8~12.8 1 1.22 60@DC~7.54GHz 60@15.26~22GHz SMA
QBF-10000-10500-45 10~10.5 1 1.5 45@9.5GHz 45@11GHz SMA
QBF-10000-12000-40 10~12 1.5 1.6 40@9.5GHz 40dBc@12.5GHz SMA
QBF-10200-10600-30 10.2~10.6 1.5 1.5 30@10GHz 30@10.8GHz SMA
QBF-10200-10800-30 10.2~10.8 1.5 1.5 30@10GHz 30@11GHz SMA
QBF-10200-12300-90 10.2~12.3 1 1.5 90@DC~7.5GHz 90@15.52~20GHz SMA
QBF-10425-10575-30 10.425~10.575 0.6 1.3 30@10.2GHz 30@10.8GHz SMA
QBF-11487-12000-30 11.487~12 2 1.5 10@11.0275GHz 30@9~10.5864GHz Pin
QBF-12000-18000-50 12~18 1 1.2 50@8.2GHz 50@20.8GHz SMA
QBF-12700-13300-40 12.7~13.3 1.5 1.5 40@12.3GHz 40@13.7GHz SMA
QBF-12800-15800-60 12.8~15.8 1 1.22 60@DC~9.85GHz 60@18.96~23GHz SMA
QBF-14000-18000-75 14~18 0.7 1.8 75@12GHz 75@20GHz SMA
QBF-14700-15300-40 14.7~15.3 1.3 1.5 40@DC~14.46GHz 40@15.54~18GHz SMA
QBF-15000-16000-40 15~16 2 1.5 40@DC~14.5GHz 40@16.5~18GHz SMA
QBF-15900-16500-40 15.9~16.5 1.3 1.5 40@DC~15.66GHz 40@16.74~18GHz SMA
QBF-16000-16200-40 16~16.2 1.5 1.5 40@DC~15.76GHz 40@16.44~18GHz SMA
QBF-16384-24576-20 16.384~24.576 3 1.8 20@15GHz 20@26GHz SMA
QBF-18000-20000-30 18~20 2 1.5 30@DC~17.2GHz 30@20.8~30GHz 2.92mm
QBF-18000-23000-50 18~23 1 1.3 50@DC~17GHz 50@24~36GHz SMA
QBF-18000-25000-80 18~25 1.5 1.8 80@DC~14GHz 85@29~35GHz 2.92mm
QBF-18000-26500-60 18~26.5 2 1.8 60@DC~15GHz 60@29.5~37GHz 2.92mm
QBF-20600-25000-60 20.6~25 2 1.8 60@18.8GHz 60@26.8GHz 2.92mm
QBF-21000-28000-50 21~28 1 1.6 65@DC~19GHz 50@30~35GHz 2.92mm
QBF-21500-22500-70 21.5~22.5 2 1.3 70@DC~20.9GHz 70@23.1~40GHz SMA
QBF-23000-26500-60 23~26.5 1.5 1.8 60@DC~21.3GHz 60@28.5~40GHz 2.92mm
QBF-23000-30000-85 23~30 1.5 1.5 85@19GHz 85@34GHz 2.92mm
QBF-24000-26000-35 24~26 2 1.5 35@DC~23GHz 35@27~40GHz 2.92mm
QBF-24000-27800-60 24~27.8 2 1.5 60@DC~22.4GHz 60@30~40GHz 2.92mm
QBF-24000-29500-10 24~29.5 2 1.5 10@23GHz 10@30.5GHz 2.92mm
QBF-24000-33000-60 24~33 2 1.8 60@DC~21GHz 60@37~40GHz 2.92mm
QBF-24000-34000-40 24~34 1.5 1.8 40@DC~20GHz 40@37~55GHz 2.92mm
QBF-24750-27750-66 24.75~27.75 1 1.4 70@23.83GHz 66@28.67GHz 2.92mm
QBF-25500-29500-60 25.5~29.5 1.5 1.8 60@DC~23.5GHz 60@31.5~40GHz 2.92mm
QBF-26000-27000-60 26~27 1 1.6 60@25GHz 60@28GHz 2.92mm
QBF-26000-28000-60 26~28 2 1.5 60@DC~23GHz 60@31~40GHz 2.92mm
QBF-26300-26900-40 26.3~26.9 0.6 1.5 60@24GHz 40@30GHz 2.92mm
QBF-26300-29700-60 26.3~29.7 2 1.5 60@DC~24.8GHz 60@32~40GHz 2.92mm
QBF-26400-33000-60 26.4~33 2 1.8 60@DC~24GHz 60@37~40GHz 2.92mm
QBF-27485-31315-50 27.485~31.315 2 1.5 60@26GHz 50@32.3GHz 2.92mm
QBF-27500-28500-60 27.5~28.5 1 1.6 60@26.6GHz 60@29.5GHz 2.92mm
QBF-27500-31000-40 27.5-31 1.5 2 40@26.8GHz 60@31.9GHz 2.92mm
QBF-27700-28300-60 27.7~28.3 1.2 1.6 60@DC~25.7GHz 60@30.3~36GHz 2.92mm
QBF-29500-30500-45 29.5~30.5 1.7 1.3 70@DC~28.5&31.5~48GHz 45@@ 28.5~29&31~31.5GHz 2.92mm
QBF-32500-33500-60 32.5~33.5 1 1.6 60@31.5GHz 60@34.5GHz 2.92mm
QBF-33000-40000-85 33-40 1 1.5 85@30GHz 85@43GHz 2.92mm
QBF-33500-36500-50 33.5~36.5 3 2 50@DC~30.5GHz 50@39.5~50GHz 2.92mm
QBF-34000-36000-50 34~36 3 2 50@DC~31GHz 50@39~50GHz 2.92mm
QBF-34500-34600-50 34.5~34.6 3.4 1.3 50@DC~34.05GHz 50@35.05~43GHz 2.92mm
QBF-36800-40200-58 36.8~40.2 2 1.5 58@DC~35.2GHz 58@42~67GHz 2.92mm
QBF-38250-38750-30 38.25~38.75 3.49 1.5 30@37.95GHz 30@39.05GHz 2.92mm
QBF-39700-40300-60 39.7~40.3 1.5 1.6 60@DC~37.7GHz 60@42.3~50GHz 2.92mm
QBF-43500-45500-50 43.5~45.5 3 2 50@42.8GHz 50@46.2GHz 2.4mm
QBF-43500-49500-20 43.5~49.5 1.5 1.6 20@41.5GHz 20@51.5GHz 2.4mm
QBF-46000-52000-50 46~52 2 1.5 70@30~40GHz 50@DC~21GHz 2.4mm
QBF-58000-62000-35 58~62 1 1.5 35@55GHz 35@65GHz 1.85mm
