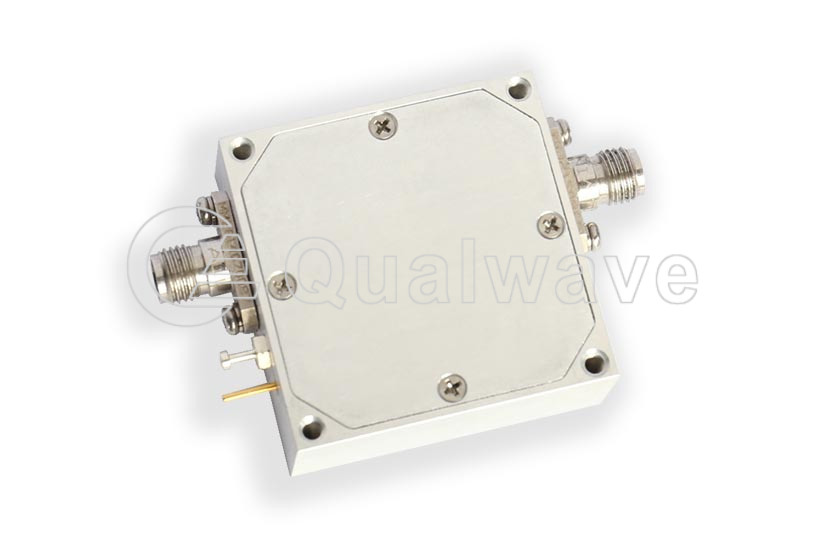

Power Amplifiers

Qualwave supplies Power Amplifiers from DC to 110GHz, and the power is up to 200W.

Features:
  • Broad Band
  • High Power
Applications:
  • Wireless
  • Transmitter
  • Laboratory Test
Power Amplifiers
Part Number Frequency
(GHz)
Psat
(dBm, Min.)
P1dB
(dBm, Min.)
Gain
(dB, Min.)
Gain Flatness
(±dB, typ.)
Voltage
(VDC)
VSWR
(Max.)
Lead Time
(Weeks)
QPA-0.1-3000-25-26 0.0001~3 - 26 25 ±4 28 2 2~8
QPA-5-500-46-37S 0.005~0.5 37 - 46 ±2 24~28 2 2~8
QPA-100-18000-30-30 0.1~18 - 30 30 ±2.5 12 2 2~8
QPA-500-2500-46-43 0.5~2.5 - 43 46 ±2.5 32 2 2~8
QPA-800-6000-25-15 0.8~6 - 15 25 ±1 12 2 2~8
QPA-950-2150-25-25 0.95~2.15 - 25 25 ±1.5 5 2 2~8
QPA-1000-4000-40-40S 1~4 40 - 40 ±2 +50 or +28 2 2~8
QPA-1000-18000-35-30 1~18 - 30 35 ±2 12 2 2~8
QPA-1000-26500-28-24 1~26.5 - 24 28 ±1.5 12 2 2~8
QPA-1800-2200-46-45S 1.8~2.2 45 - 46 ±1 30 1.5 2~8
QPA-2000-3000-33-33 2~3 - 33 33 ±3 30~32 2 2~8
QPA-2000-18000-40-40S 2~18 40 - 40 ±3 32 2 2~8
QPA-2300-4200-53-47.8S 2.3~4.2 47.8 - 53 ±2.5 50 2 2~8
QPA-2500-2700-50-47.8S 2.5~2.7 47.8 - 50 ±1 32 2 2~8
QPA-6000-18000-45-47S 6~18 47 - 45 - 28 2 2~8
QPA-18000-22000-35-13 18~22 - 13 35 ±1 5 2 2~8
QPA-18000-22000-40-33 18~22 - 33 40 ±1 6 2 2~8
QPA-18000-26500-15-23 18~26.5 - 23 15 ±1 9 1.8 2~8
QPA-18000-26500-30-30 18~26.5 - 30 30 - 8 2 2~8
QPA-18000-26500-40-40 18~26.5 - 40 40 ±2 8 2 2~8
QPA-18000-26500-45-40S 18~26.5 40 - 45 ±3 28, -5 2 2~8
QPA-18000-40000-20-20 18~40 - 20 20 - 6 2 2~8
QPA-18000-40000-30-27 18~40 - 27 30 ±2.5 12 2 2~8
QPA-18000-40000-30-30 18~40 - 30 30 ±2.5 6 2 2~8
QPA-20000-32000-22-21 20~32 - 21 22 ±2.5 5 2 2~8
QPA-20000-32000-25-21 20~32 - 21 25 ±1 8 1.5 2~8
QPA-20000-40000-33-29S 20~40 29 - 33 ±2.5 5 2 2~8
QPA-24000-26000-30-30 24~26 - 30 30 - 8 2 2~8
QPA-24000-26000-30-32 24~26 - 32 30 - 8 2 2~8
QPA-25000-28000-18-25 25~28 - 25 18 - 6 2 2~8
QPA-26500-40000-18-23 26.5~40 - 23 18 ±1.5 6 1.8 2~8
QPA-26500-40000-27-27 26.5~40 - 27 27 ±2 6.5 2 2~8
QPA-26500-40000-30-26S 26.5~40 26 - 30 ±2 6 2 2~8
QPA-27500-31200-25-25 27.5~31.2 - 25 25 ±1 12 2 2~8
QPA-29000-31000-35-30 29~31 - 30 35 ±1 6 2 2~8
QPA-36000-50000-20-30 36~50 - 30 20 ±1.5 5 2 2~8
QPA-37000-40000-45-34-F 37~40 - 34 45 - 6 2 2~8
QPA-39000-40000-40-33 39~40 - 33 40 - 6 2 2~8
QPA-40000-50000-20-20 40~50 - 20 20 - 6 2 2~8
QPA-40000-50000-45-29S 40~50 29 - 45 ±2 5~6 2 2~8
QPA-40000-60000-40-20S 40~60 20 - 40 ±2.5 15 2 2~8
QPA-57000-67000-30-10 57~67 - 10 30 - 12 2 2~8
QPA-61000-65000-18-26S 61~65 26 - 18 ±1 5 2 2~8
QPA-61000-65000-20-20S 61~65 20 17 20 ±1.5 5 2 2~8
