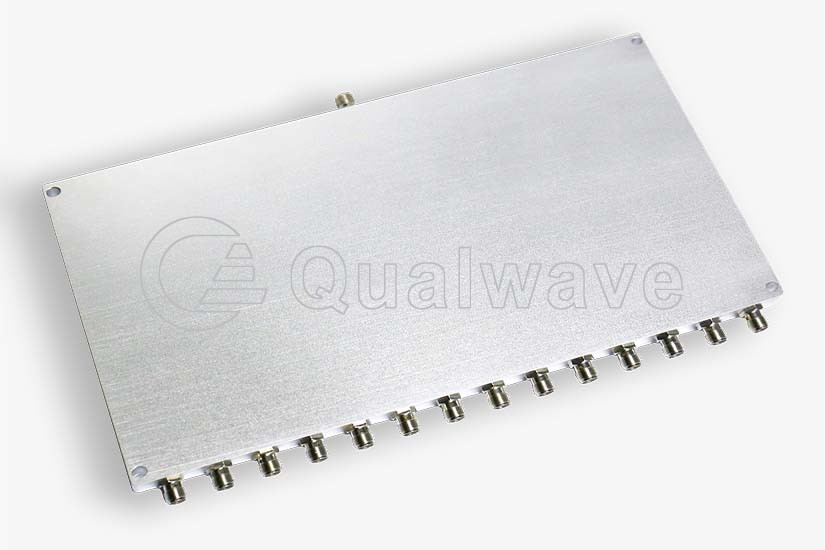

Qualwave supplies 14-way power dividers/combiners at frequencies from DC to 1.6GHz.
Features:
- Broadband
- Small Size
- Low Insertion Loss
Applications:
- Amplifiers
- Mixers
- Antennas
- Laboratory Test
| Part Number | Frequency (GHz) |
Power as Divider (W) |
Power as Combiner (W) |
IL (dB,Max.） |
Isolation (dB,Min.) |
Amplitude Balance (dB,Max.) |
Phase Balance (°,Max.) |
VSWR (Max.) |
Connector | Lead Time （Weeks) |
|---|---|---|---|---|---|---|---|---|---|---|
| QPD14C-500-1600-S | 0.5~1.6 | - | - | 18.5 | 18 | ±1.5 | ±3 | 1.5 | SMA | 2~3 |
